5.5m Mobile Scaffold Large with Outriggers (Trapdoor)

5.5m Mobile Scaffold – Large with Outriggers & Trapdoor

Our 5.5m mobile scaffold is a heavy-duty scaffold tower supplied with outriggers and a trapdoor platform, making it a practical setup for higher-access painting, maintenance, renovation and trade projects.

With a generous 1.8m × 1.16m footprint, the large model provides a spacious working area. The outriggers provide additional stability to the scaffold setup, while the trapdoor platform provides convenient access between scaffold levels.

Made from pre-galvanised steel, this mobile scaffold has a 225kg Safe Working Load (SWL) and is fitted with lockable swivel wheels for convenient movement and positioning.

Product Specifications

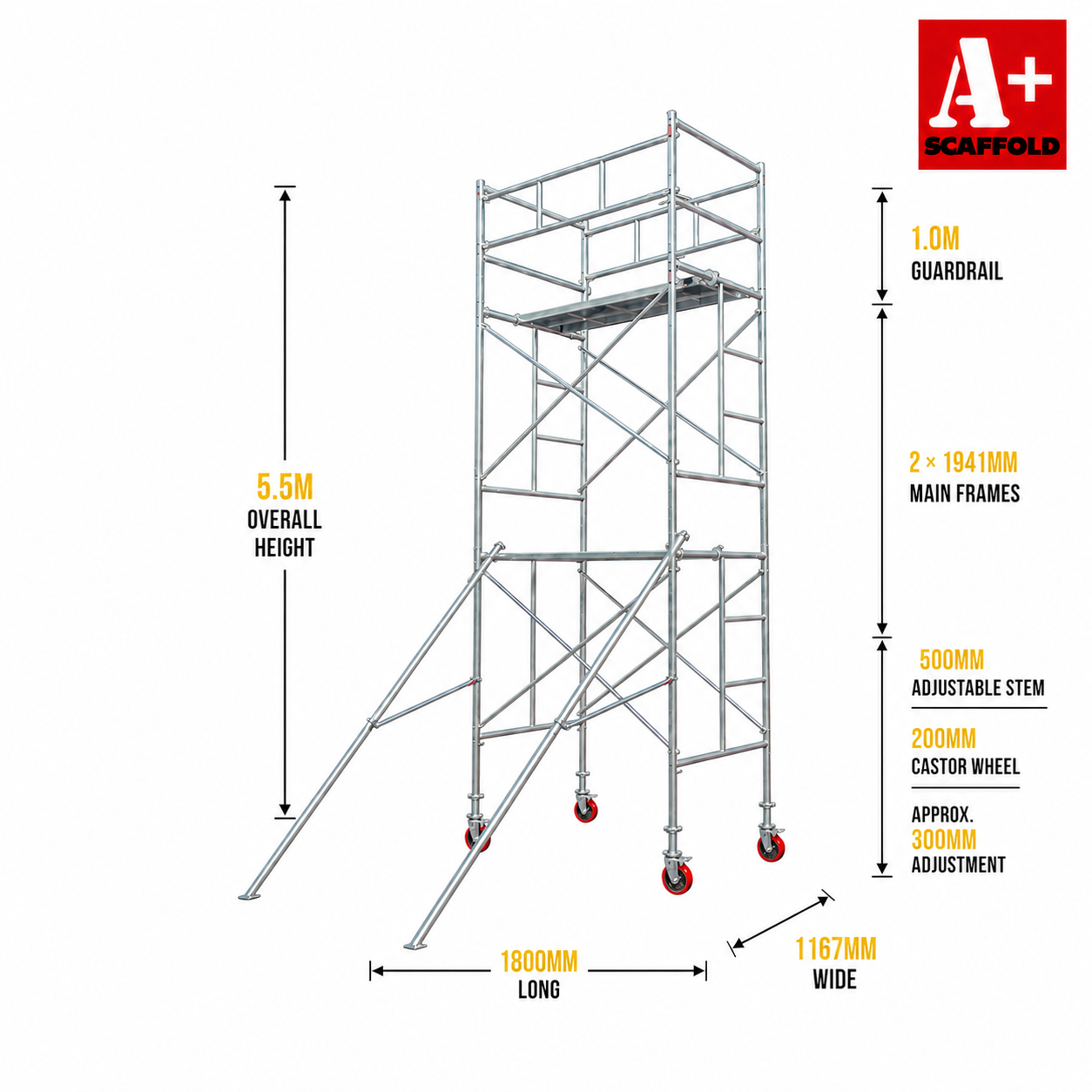

• Maximum set-up height: approx. 5.5m
• Length: 1.8m
• Width: 1.16m
• Safe Working Load (SWL): 225kg
• Material: Pre-galvanised steel
• Platform: Trapdoor platform
• Outriggers: Included
• Wheels: 6-inch lockable swivel castors

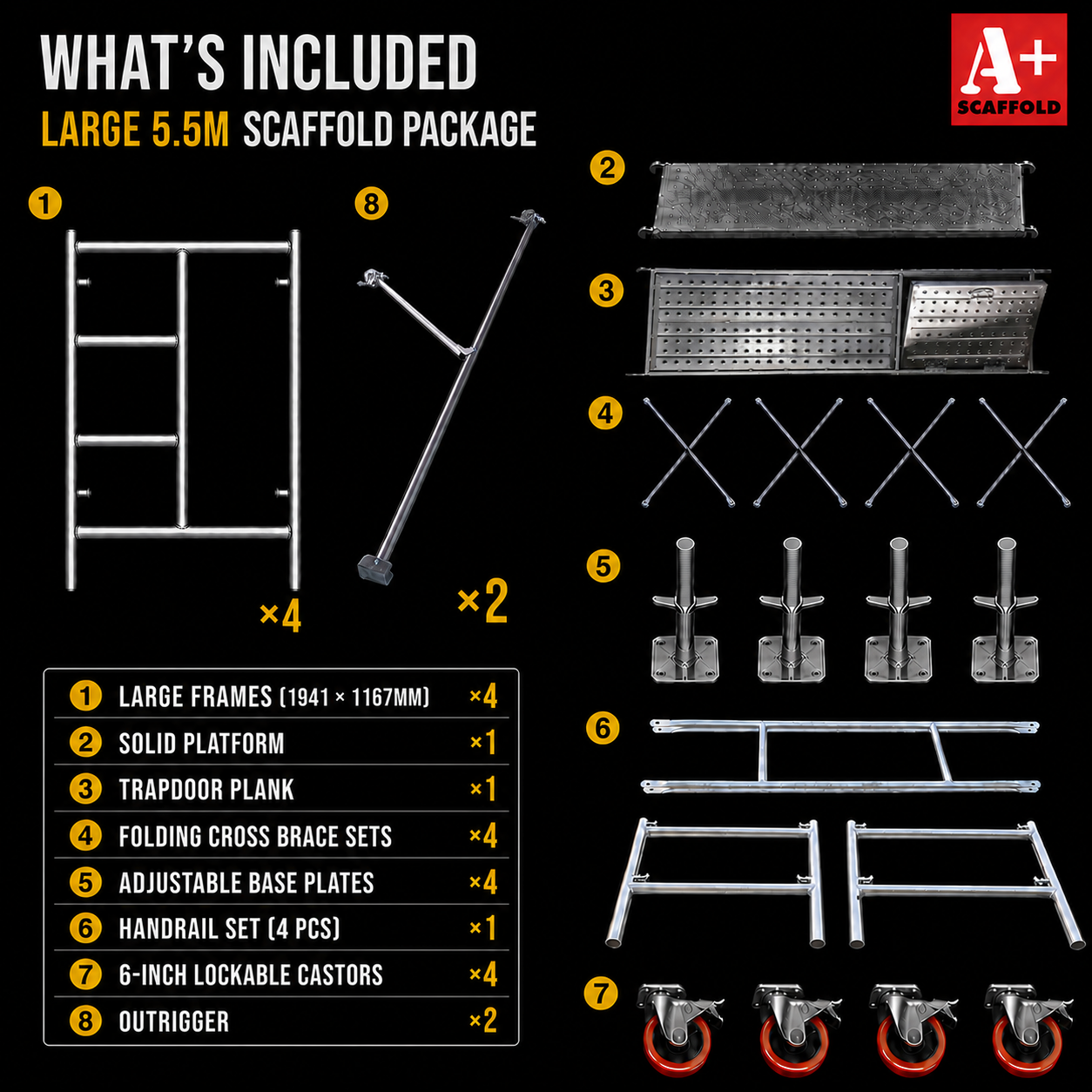

What’s Included

• Ladder frames (1941 x 1167mm) x 4
• Platform solid plank (1800 x 505mm) x 1
• Platform trapdoor plank (1800 x 550mm) x 1
• Diagonal brace bar (2200mm) x 4
• 4 side handrail x 1 set
• Adjustable base plate x 4
• 6 inch lockable swivel wheels x 4
• Outrigger x 2

Outriggers for Additional Stability

The included outriggers increase the scaffold’s base dimensions and provide additional stability when the tower is correctly assembled and positioned.

This makes the 5.5m mobile scaffold a practical choice for higher-access projects where a more stable scaffold configuration is required.

Trapdoor Platform for Easier Access

The trapdoor platform allows convenient access through the working platform when moving between scaffold levels. Combined with the outriggers, this configuration is well suited to a range of maintenance and trade applications.

The large 1.8m × 1.16m footprint also provides useful working space for the user and essential tools.

Suitable for Higher Access Projects

This 5.5m mobile scaffold is suitable for a range of projects, including:

• Exterior painting
• Ceiling and wall maintenance
• Gutter and fascia work
• Building and renovation projects
• Property maintenance
• Trade and commercial applications

Always ensure the scaffold is correctly assembled and the outriggers are correctly installed before use. Workplace use and work at height may require additional safety components or specific setup requirements. Please contact us if you’re unsure which configuration is suitable for your job.

Freight & Pickup

The listed product price does not include freight.

Nationwide delivery is available, with freight calculated according to your destination and order size. Where available, we can quote:

• Delivery directly to your address
• Delivery to your nearest Mainfreight depot for collection

Use the GET A FREIGHT QUOTE button above to send us your delivery details.

Pickup may also be available from our Auckland or Christchurch stock locations, subject to stock availability.

Need a Different Scaffold Setup?

Browse our full range of mobile scaffolds towers for different heights, platform options and configurations. If you’re unsure which scaffold is suitable for your project, contact A+ Scaffold and we can help you choose the right setup.
