Description

Product Feature:
– Efficiency: 2.5m platform, max work area
– FLEXIBLE: Light weight, easy to install and move around
– RELIABLE: Stable supply, easy add-on extra parts, Kiwi sales
– HIGH QUALITY: Hot dipped galvanised 48mm steel frame, thicker components to support the system

PARTS:
– Steel Ladder frame (2000*1350) x 4
– Aluminium trap door plank 2500mm x 1 loading rate 200kg
– Aluminium narrow plank 2500mm x 1 loading rate 200kg
– Aluminium ladder with hook x 1
– brace bars x 8
– Diagonal brace bars x 4
– handrail end 1000*1350 x 2
– Handrail side 2500mm x 2
– 600mm Feet *4 with 8 inch wheels
– 3m outrigger x 2

SPECIFICATIONS

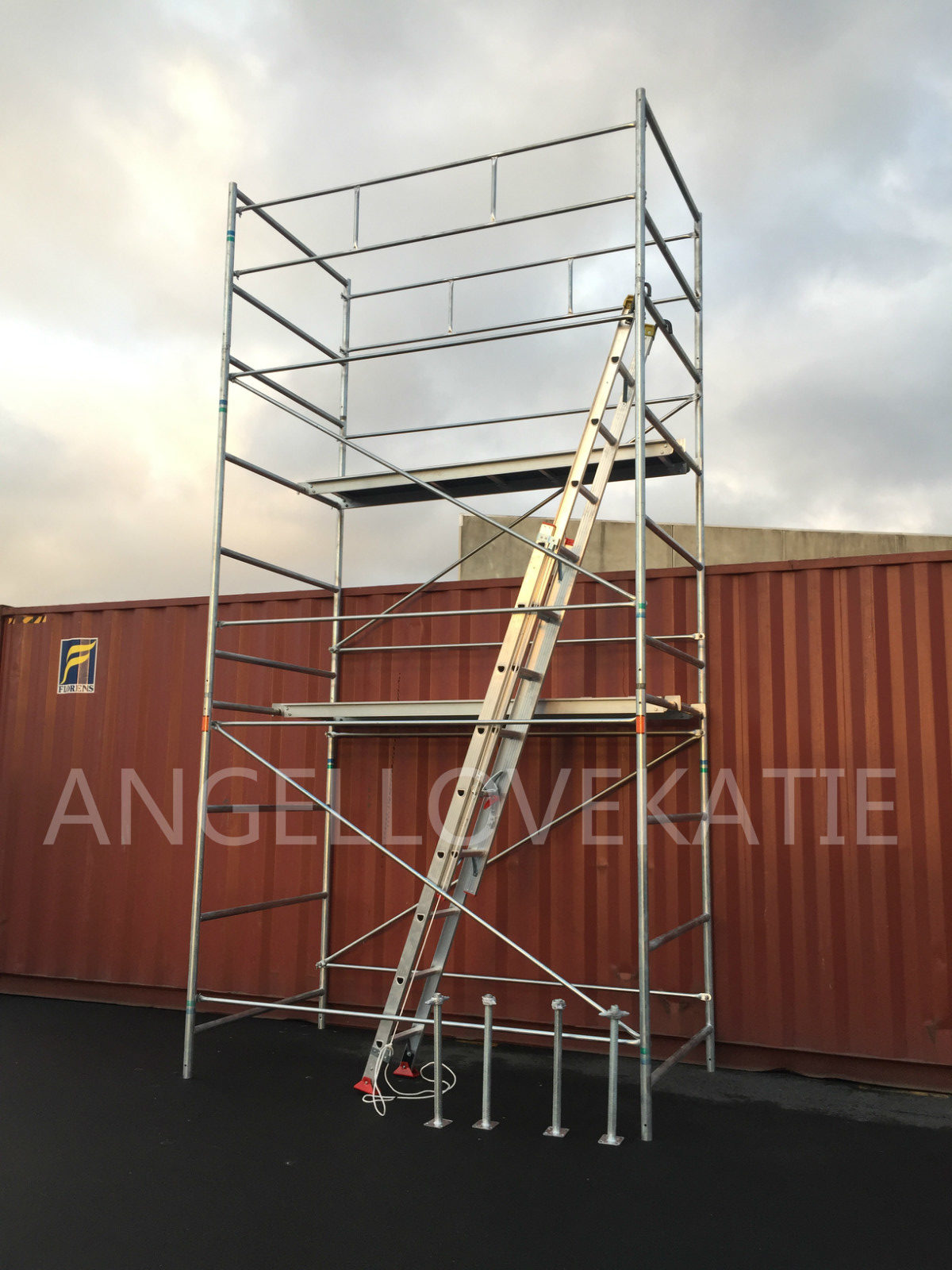

Assembled dimensions: 5.5m (H) x 2.5m (W) x 1.35m (D)
Maximum recommended working height: 4.5m
Material: hot dipped galvalised steel and aluminum
Loading rate: system 800kg, plank 230kg
