5.3m Mobile Scaffold Tower Large (Trapdoor)

5.3m Trapdoor Scaffold – Large

Our 5.3m trapdoor scaffold is a heavy-duty mobile scaffold designed for painting, property maintenance, renovations and trade work. The trapdoor platform provides convenient access between scaffold levels, making it a practical choice for jobs requiring regular access to the upper platform.

With a generous 1.8m × 1.16m footprint, the large model provides a spacious working area for a wide range of indoor and outdoor projects.

Made from pre-galvanised steel, this mobile scaffold has a 225kg Safe Working Load (SWL) and is fitted with lockable swivel wheels for convenient movement and positioning.

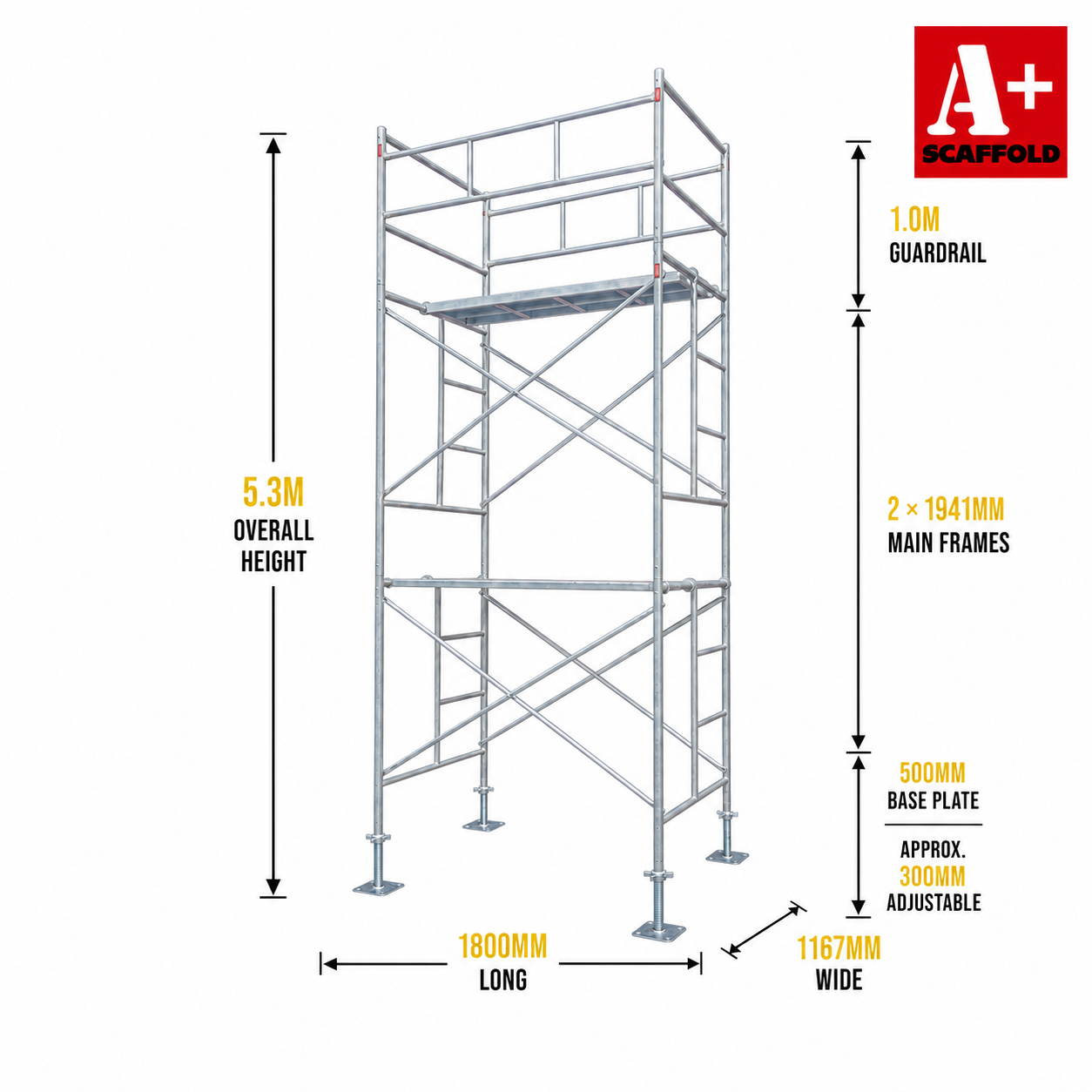

Product Specifications

• Maximum set-up height: approx. 5.3m
• Length: 1.8m
• Width: 1.16m
• Safe Working Load (SWL): 225kg
• Material: Pre-galvanised steel
• Platform: Trapdoor platform
• Wheels: 6-inch lockable swivel castors

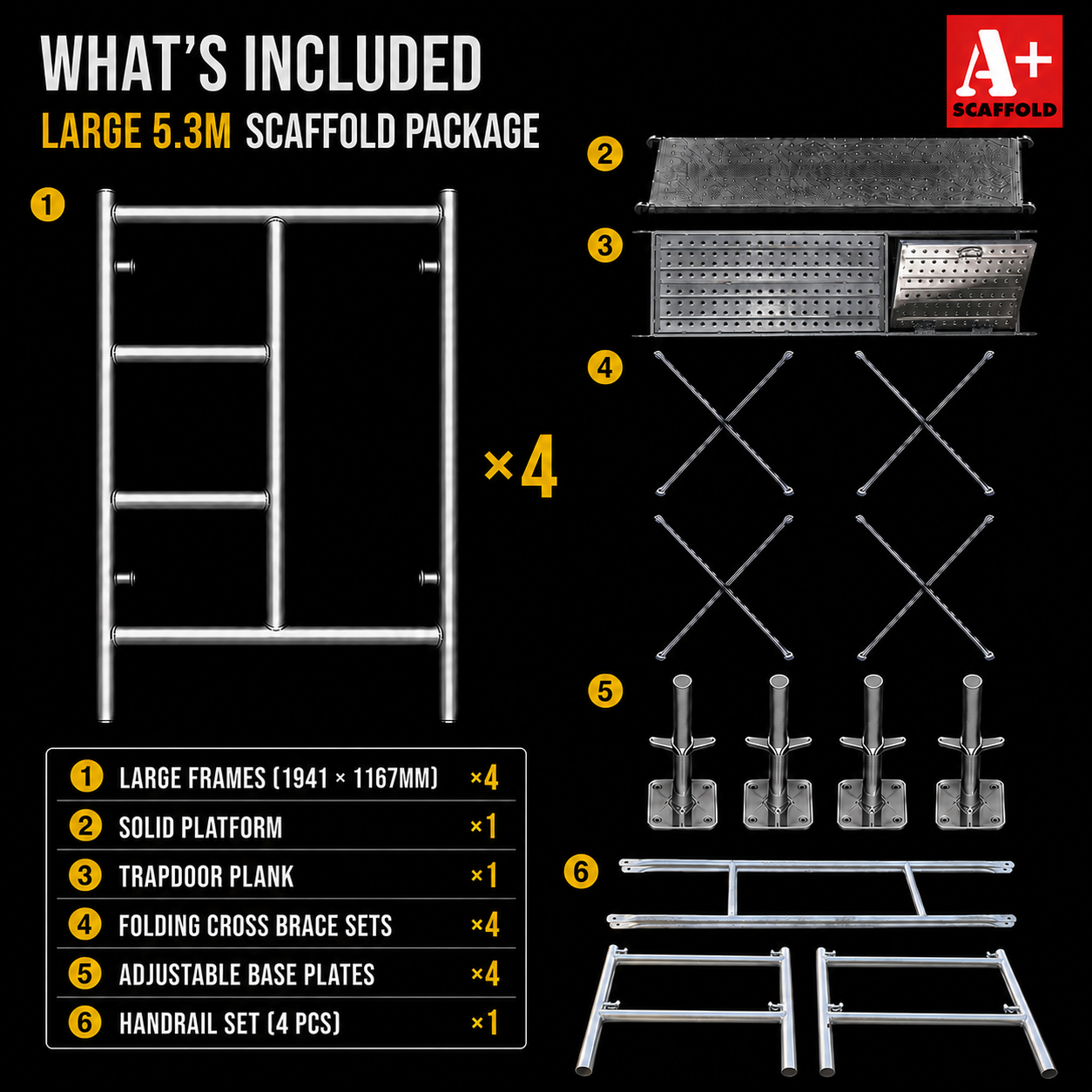

What’s Included

• Ladder frames (1941 x 1167mm) x 4
• Platform solid plank (1800 x 505mm) x 1
• Platform trapdoor plank (1800 x 550mm) x 1
• Diagonal brace bar (2200mm) x 4
• Adjustable base plate x 4
• Handrail x 1

Trapdoor Platform for Easier Access

The trapdoor platform allows more convenient access through the working platform when moving between scaffold levels. This makes the 5.3m trapdoor scaffold particularly useful for maintenance and trade projects where regular access to the upper level is required.

The large platform area also provides useful working space for the user and essential tools.

Suitable for Higher Access Projects

The 5.3m trapdoor scaffold provides additional height for a range of projects, including:

• Exterior painting
• Ceiling and wall maintenance
• Gutter and fascia work
• Building and renovation projects
• Property maintenance
• Trade and commercial applications

Always ensure the scaffold is correctly assembled before use. Workplace use and work at height may require additional safety components or specific setup requirements. Please contact us if you’re unsure which configuration is suitable for your job.

Freight & Pickup

The listed product price does not include freight.

Nationwide delivery is available, with freight calculated according to your destination and order size. Where available, we can quote:

• Delivery directly to your address
• Delivery to your nearest Mainfreight depot for collection

Use the GET A FREIGHT QUOTE button above to send us your delivery details.

Pickup may also be available from our Auckland or Christchurch stock locations, subject to stock availability.

Need a Different Height?

Browse our full range of  mobile scaffolds  towers for different heights and configurations. If you’re unsure which scaffold is suitable for your project, contact A+ Scaffold and we can help you choose the right setup.
