7.5m Mobile Scaffold Large with Outriggers (Trapdoor)

7.5m Scaffold with Outriggers & Trapdoor – Large

Our 7.5m scaffold with outriggers is a heavy-duty mobile scaffold designed for higher-access painting, property maintenance, renovation and trade projects. This configuration includes outriggers and a trapdoor platform, providing additional stability and convenient access between scaffold levels.

With a generous 1.8m × 1.16m footprint, the large model provides a spacious working area for a wide range of indoor and outdoor applications.

Made from pre-galvanised steel, this mobile scaffold has a 225kg Safe Working Load (SWL) and is fitted with lockable swivel wheels for convenient movement and positioning.

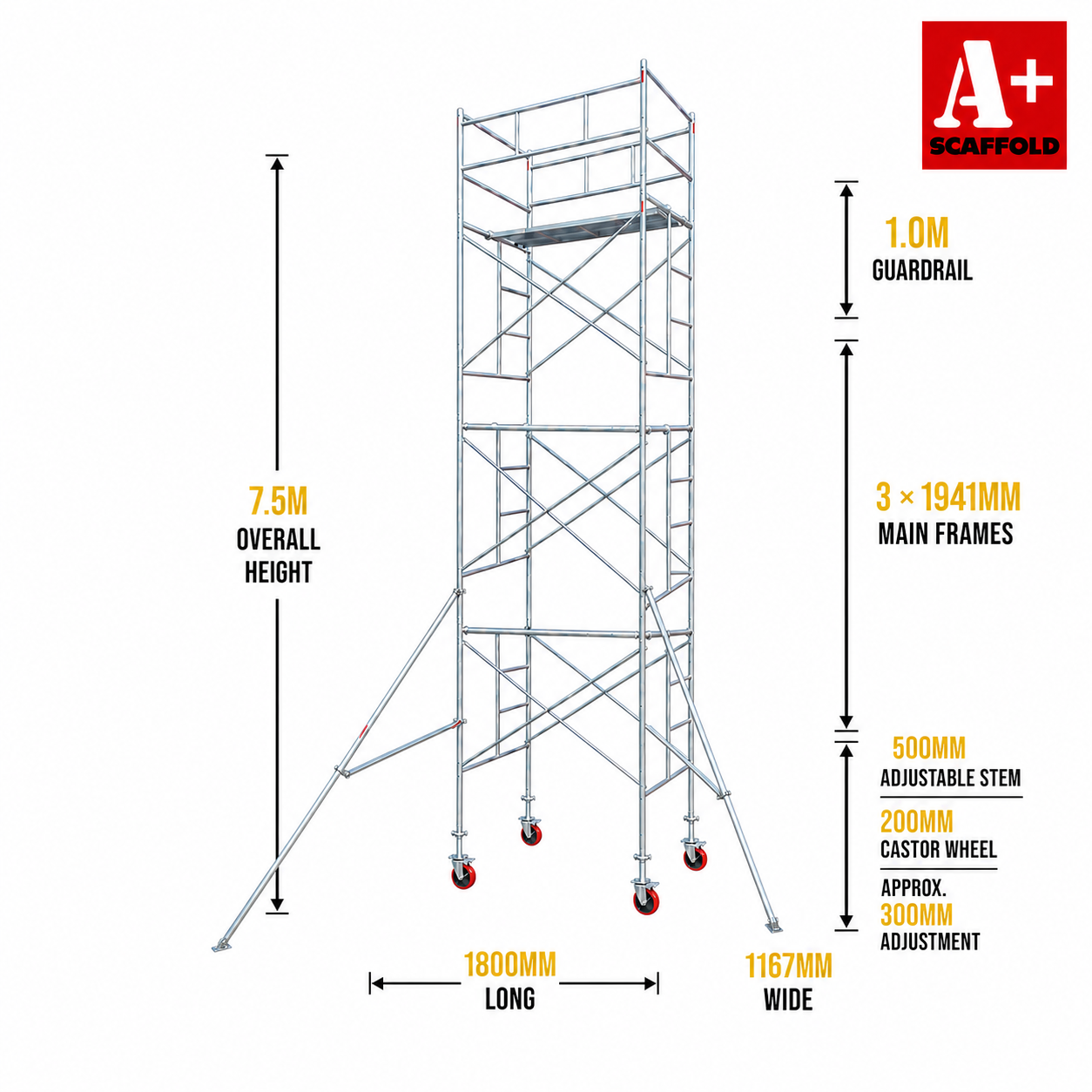

Product Specifications

• Maximum set-up height: approx. 7.5m
• Length: 1.8m
• Width: 1.16m
• Safe Working Load (SWL): 225kg
• Material: Pre-galvanised steel
• Platform: Trapdoor platform
• Outriggers: Included
• Wheels: 6-inch lockable swivel castors

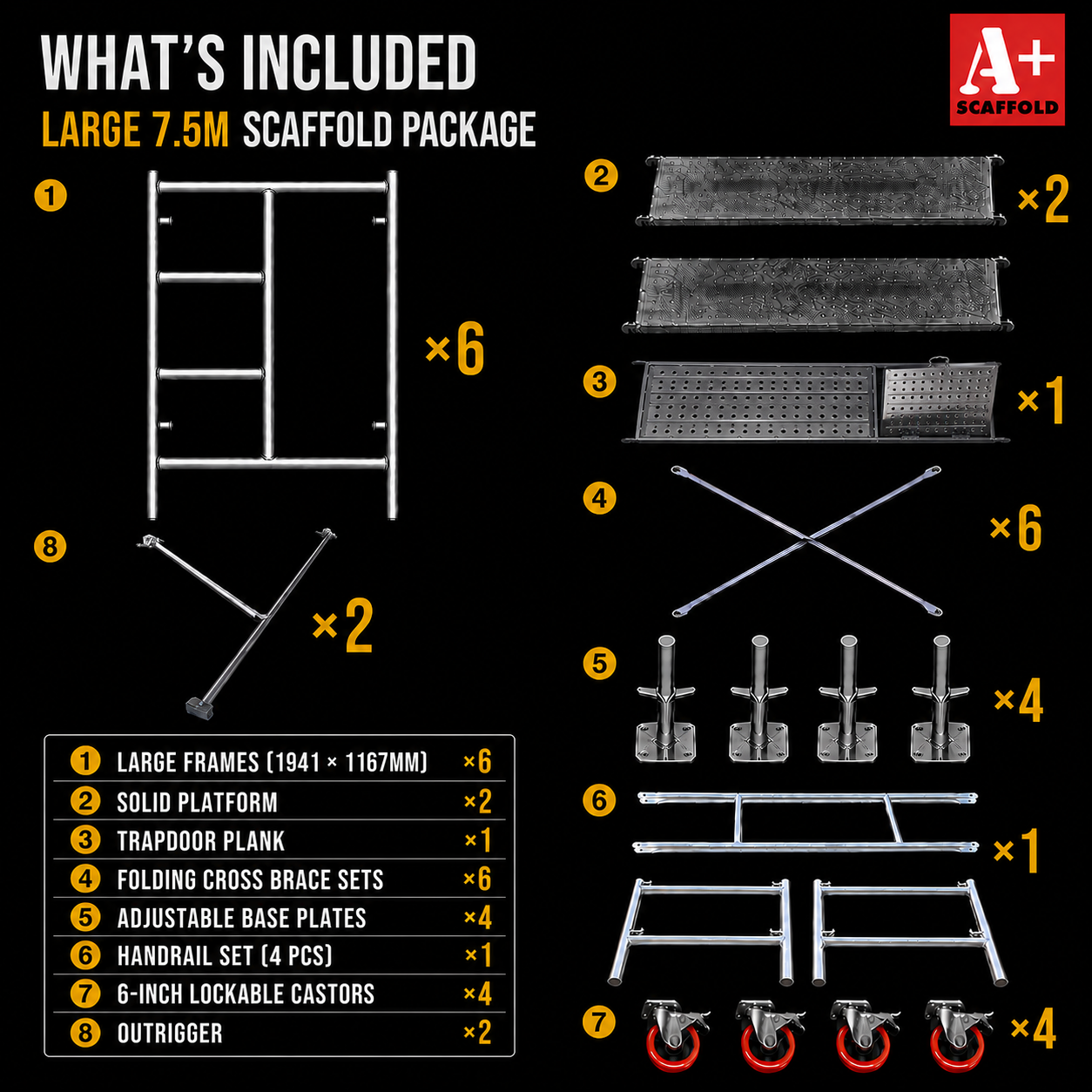

What’s Included

• Ladder frames (1941 x 1167mm) x 6
• Platform solid plank (1800 x 505mm) x 2
• Platform trapdoor plank (1800 x 550mm) x 1
• Diagonal brace bar (2200mm) x 6
• 4 side handrail x 1 set
• Adjustable base plate x 4
• 6 inch lockable swivel wheels x 4
• outrigger x 2

Outriggers for Additional Stability

The included outriggers increase the scaffold’s base dimensions and provide additional stability when correctly installed. This is particularly important for a higher scaffold configuration.

The 7.5m scaffold with outriggers should always be assembled according to the supplied instructions, with all required stabilising components correctly installed before use.

Trapdoor Platform for Easier Access

The trapdoor platform provides convenient access through the working platform when moving between scaffold levels.

Combined with the outriggers, this configuration provides a practical solution for higher-access projects where both stability and convenient access between levels are important.

Designed for Higher-Access Projects

The 7.5m scaffold with outriggers is suitable for:

• Exterior painting
• High wall and ceiling maintenance
• Gutter and fascia work
• Building and renovation projects
• Property maintenance
• Trade and commercial applications

For a scaffold of this height, correct stabilising and safety components are particularly important. Always assemble and use the scaffold according to the supplied instructions.

Workplace use and work at height may require additional safety components, specific setup requirements or a qualified scaffolder depending on the application and platform height. Please contact us if you’re unsure which configuration is suitable for your job.

Freight & Pickup

The listed product price does not include freight.

Nationwide delivery is available, with freight calculated according to your destination and order size. Where available, we can quote:

• Delivery directly to your address
• Delivery to your nearest Mainfreight depot for collection

Use the GET A FREIGHT QUOTE button above to send us your delivery details.

Pickup may also be available from our Auckland or Christchurch stock locations, subject to stock availability.

Need a Different Configuration?

You can also browse our full range of mobile scaffolds towers for different heights and configurations.
