7.5m Mobile Scaffold Medium (Trapdoor)

7.5m Trapdoor Scaffold – Medium

Our 7.5m trapdoor scaffold medium is a tall mobile scaffold designed for property maintenance, renovation and general trade applications where additional working height and convenient platform access are required.

This model includes a trapdoor platform, providing a convenient opening for access between scaffold levels.

With a 1.8m × 0.97m footprint, the medium model provides useful working space while remaining narrower than our large scaffold range.

Made from pre-galvanised steel, the scaffold has a 225kg Safe Working Load (SWL) and is fitted with lockable swivel wheels for convenient movement and positioning.

Product Specifications

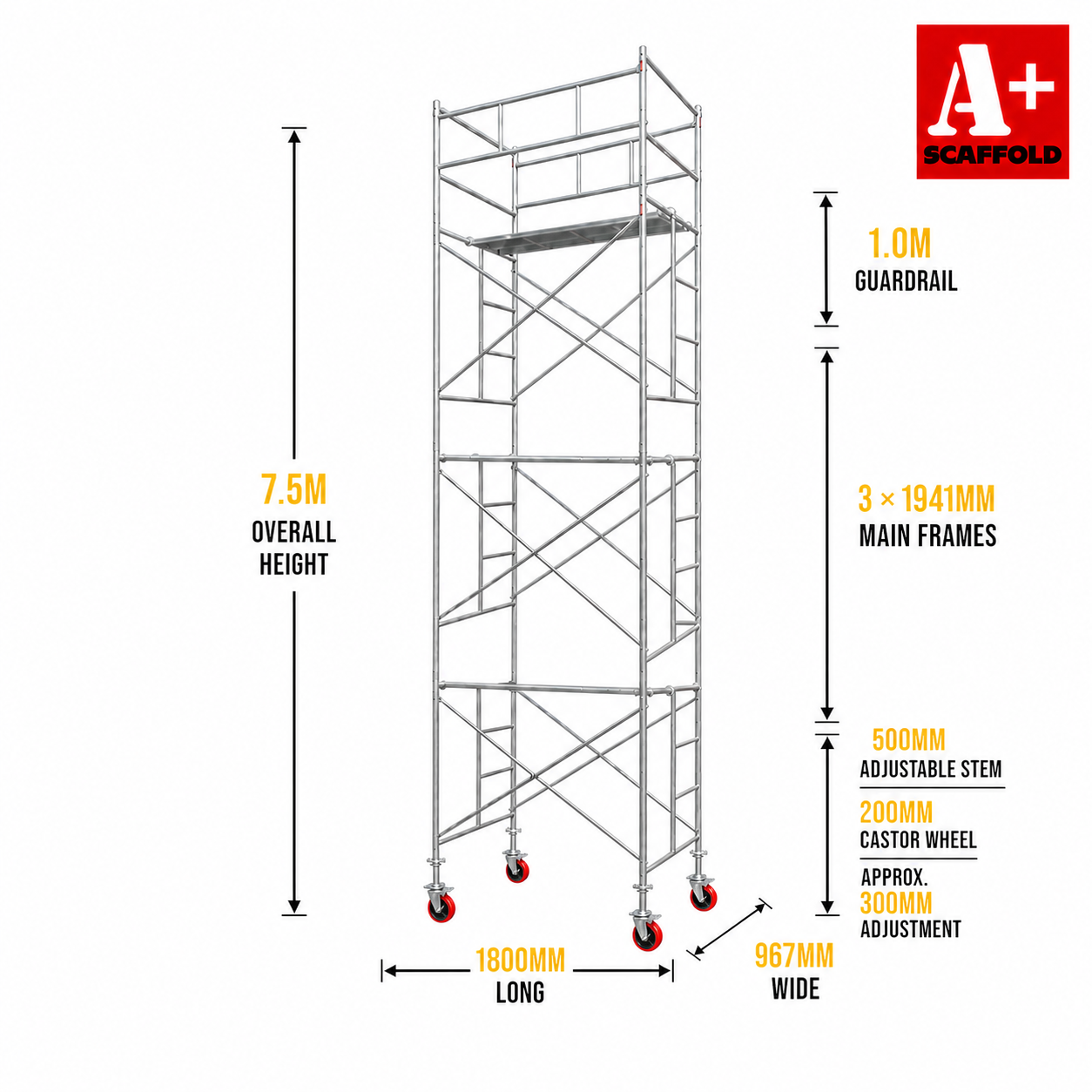

• Maximum set-up height: approx. 7.5m
• Length: 1.8m
• Width: approx. 0.97m
• Main frame width: 967mm
• Platform: Trapdoor platform
• Safe Working Load (SWL): 225kg
• Material: Pre-galvanised steel
• Wheels: 6-inch lockable swivel castors

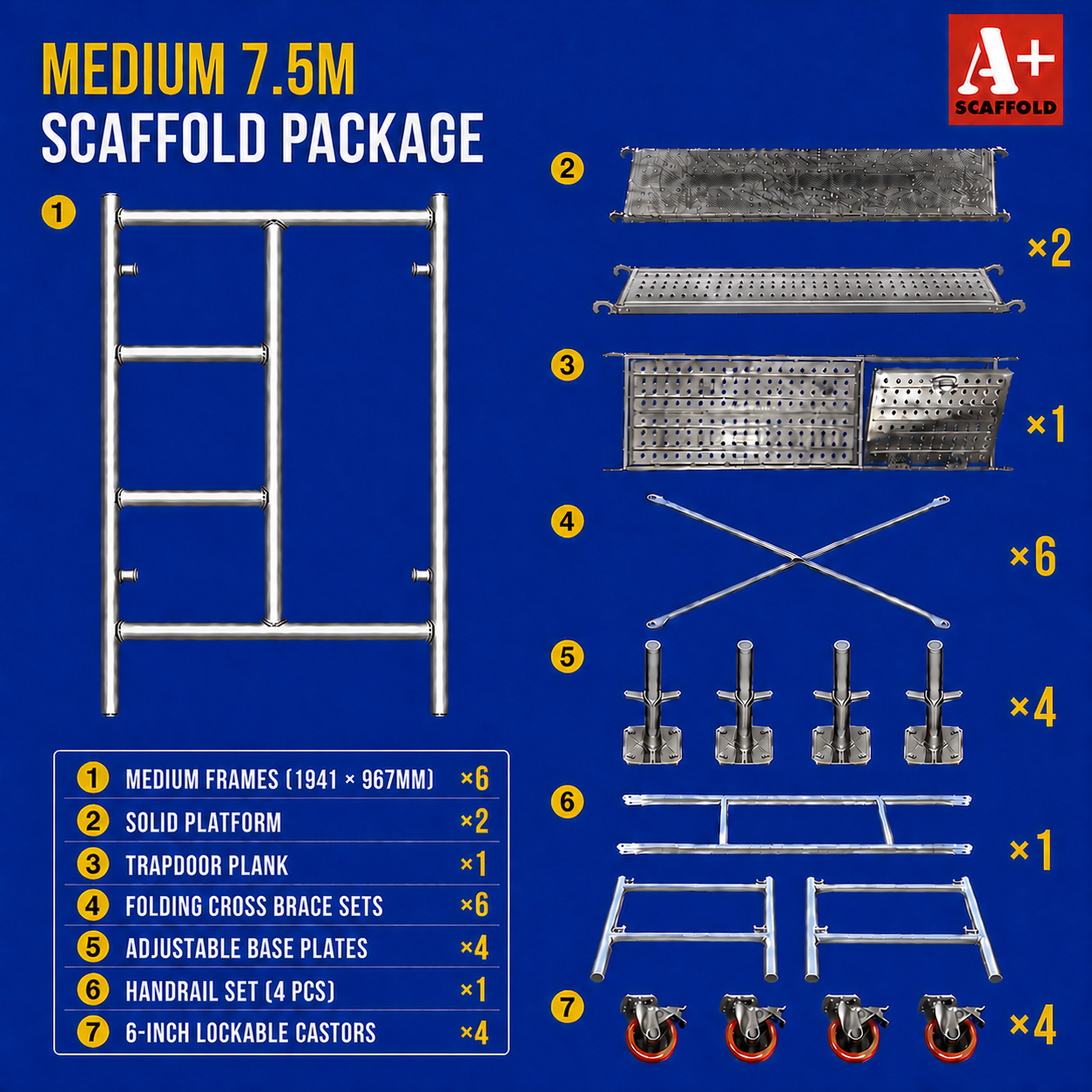

What’s Included

• Door frames (1941mm*967mm) x 6
• Platform trapdoor plank (1800 x 550mm) x 1
• Platform solid plank (1800 x 505mm) x 1
• Platform plank solid (1800 x 305mm) x 1
• Diagonal brace bar x 6
• Adjustable base plate with 6 inch wheels x 4
• Handrail x 1

Trapdoor Platform for Easier Access

The trapdoor platform provides a convenient opening for access between scaffold levels, making it easier to move through the scaffold structure when accessing the working platform.

For a taller scaffold configuration, the trapdoor platform provides a practical access option where regular movement between scaffold levels is required.

Medium Width for Versatile Access

The approximately 0.97m-wide frame gives the 7.5m trapdoor scaffold medium a practical balance between working space, scaffold height and overall width.

It is suitable for:

• Exterior painting
• High wall maintenance
• Gutter and fascia work
• Building and renovation projects
• Property maintenance
• General trade applications

The medium-width design can be useful where available working space is limited and the wider footprint of a large scaffold is not required.

Mobile Scaffold Design

Lockable swivel wheels allow the scaffold to be repositioned around the work area when required. The scaffold must not be moved while occupied, and all wheels should be securely locked before use.

For a scaffold of this height, correct stabilising and safety components are particularly important. Always assemble and use the scaffold according to the supplied instructions.

Workplace use and work at height may require additional safety components, specific setup requirements or a qualified scaffolder depending on the application and platform height.

Choosing the Right Scaffold Configuration

Different jobs may require different platform, access and stabilising configurations. Before using a taller scaffold, consider the required platform height, access method, working environment and appropriate stabilising components.

If you are unsure which scaffold configuration is suitable for your project, contact us before ordering and we can help you compare the available Medium scaffold options.

Freight & Pickup

The listed product price does not include freight.

Nationwide delivery is available, with freight calculated according to your destination and order size. We can quote delivery directly to your address or, where available, delivery to your nearest Mainfreight depot for collection.

Use the GET A FREIGHT QUOTE button above to send us your delivery details.

Pickup may also be available from our Auckland or Christchurch stock locations, subject to stock availability.

Prefer the Standard Platform Version?

If you also have a standard-platform 7.5m Mobile Scaffold Medium, we can link the two products together once that page is optimised.
